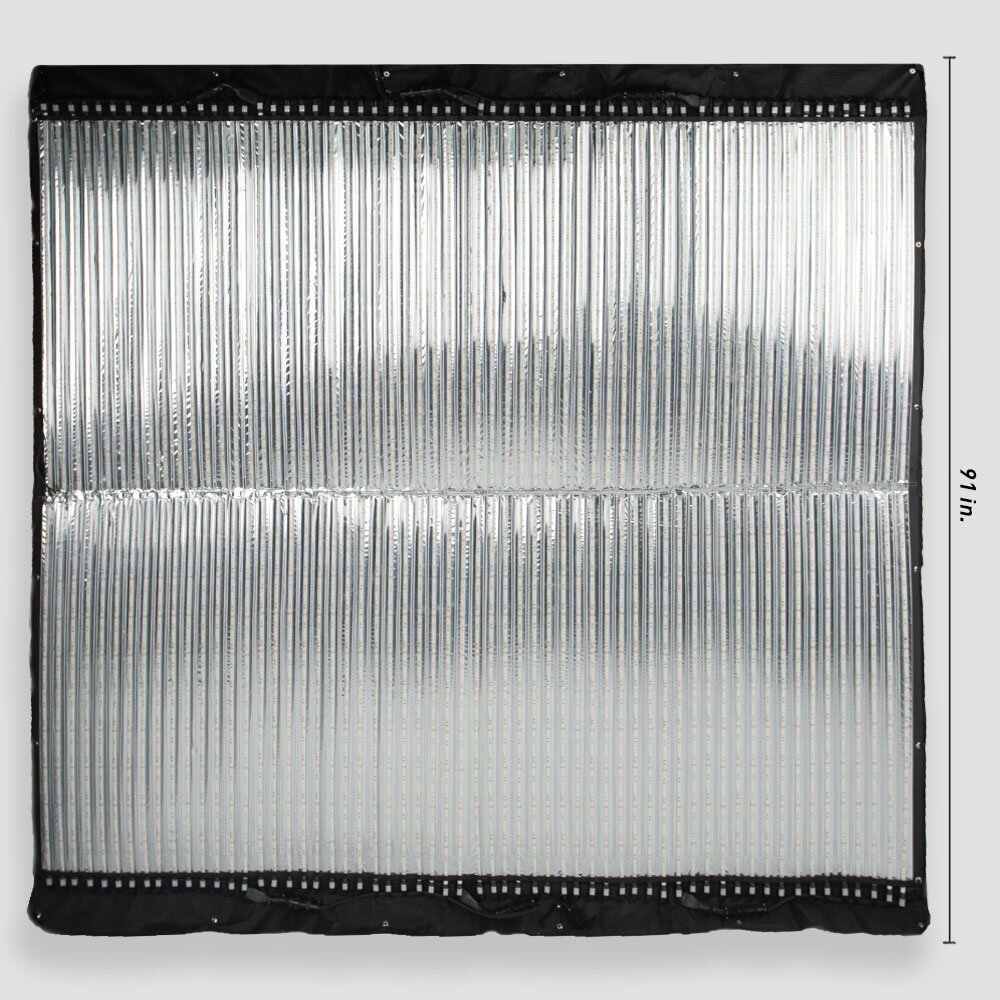

8' X 8' LED Blanket
Sourcemaker LED Blankets are ideal for difficult, hard to light areas. All blankets are modular, and can be attached to each other and DMXed to create larger sources. When maximum light output in the smallest footprint is needed, choose the HIGH OUTPUT Blanket which features twice as many cinema quality LED strips.
Sourcemaker’s LED Blankets are an all-in-one lighting solution that sets up easily and adjusts fast. Our blankets are among the most versatile lighting options in the industry. Each blanket uses color correct LED ribbon to achieve a wide range of clean color temperatures, ranging from 2675K-6010K. Each LED ribbon strip is encased in a life extending highly durable plastic and can be removed from the blanket. With the included harness, each strip can be used separate from the blanket as an individual light source.
Sourcemaker LED Blankets are ideal for difficult, hard to light areas. All blankets are modular, and can be attached to each other and DMXed to create larger sources.
Sourcemaker LED blankets come in various sizes, and are designed to fit inside standard grip equipment. Accessories are available, including diffusion, skirts, mounting brackets and snapgrids.
FEATURES
Cinema quality LEDS (95+ CRI)
Fast all-in-one-setup
Combine multiple blankets
Sealed and secured individual ribbon strips
Swap colors in the same blanket fixture
Lightweight, roll up design
Grommets and velcro system to mount anywhere
Easy to ship and store - Can fit in carry on luggage
Optimized for Sourcemaker dimming products
Battery system compatible
Custom sizes upon request
Twice as many LED strips as standard LED Blankets (High Output Only)
Sourcemaker LED Blankets are ideal for difficult, hard to light areas. All blankets are modular, and can be attached to each other and DMXed to create larger sources. When maximum light output in the smallest footprint is needed, choose the HIGH OUTPUT Blanket which features twice as many cinema quality LED strips.
Sourcemaker’s LED Blankets are an all-in-one lighting solution that sets up easily and adjusts fast. Our blankets are among the most versatile lighting options in the industry. Each blanket uses color correct LED ribbon to achieve a wide range of clean color temperatures, ranging from 2675K-6010K. Each LED ribbon strip is encased in a life extending highly durable plastic and can be removed from the blanket. With the included harness, each strip can be used separate from the blanket as an individual light source.
Sourcemaker LED Blankets are ideal for difficult, hard to light areas. All blankets are modular, and can be attached to each other and DMXed to create larger sources.
Sourcemaker LED blankets come in various sizes, and are designed to fit inside standard grip equipment. Accessories are available, including diffusion, skirts, mounting brackets and snapgrids.
FEATURES
Cinema quality LEDS (95+ CRI)
Fast all-in-one-setup
Combine multiple blankets
Sealed and secured individual ribbon strips
Swap colors in the same blanket fixture
Lightweight, roll up design
Grommets and velcro system to mount anywhere
Easy to ship and store - Can fit in carry on luggage
Optimized for Sourcemaker dimming products
Battery system compatible
Custom sizes upon request
Twice as many LED strips as standard LED Blankets (High Output Only)
Sourcemaker LED Blankets are ideal for difficult, hard to light areas. All blankets are modular, and can be attached to each other and DMXed to create larger sources. When maximum light output in the smallest footprint is needed, choose the HIGH OUTPUT Blanket which features twice as many cinema quality LED strips.
Sourcemaker’s LED Blankets are an all-in-one lighting solution that sets up easily and adjusts fast. Our blankets are among the most versatile lighting options in the industry. Each blanket uses color correct LED ribbon to achieve a wide range of clean color temperatures, ranging from 2675K-6010K. Each LED ribbon strip is encased in a life extending highly durable plastic and can be removed from the blanket. With the included harness, each strip can be used separate from the blanket as an individual light source.
Sourcemaker LED Blankets are ideal for difficult, hard to light areas. All blankets are modular, and can be attached to each other and DMXed to create larger sources.
Sourcemaker LED blankets come in various sizes, and are designed to fit inside standard grip equipment. Accessories are available, including diffusion, skirts, mounting brackets and snapgrids.
FEATURES
Cinema quality LEDS (95+ CRI)
Fast all-in-one-setup
Combine multiple blankets
Sealed and secured individual ribbon strips
Swap colors in the same blanket fixture
Lightweight, roll up design
Grommets and velcro system to mount anywhere
Easy to ship and store - Can fit in carry on luggage
Optimized for Sourcemaker dimming products
Battery system compatible
Custom sizes upon request
Twice as many LED strips as standard LED Blankets (High Output Only)

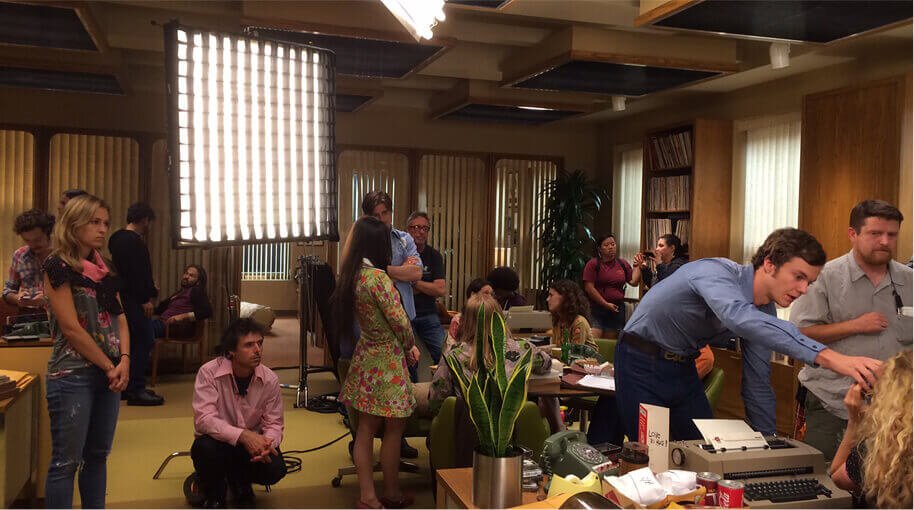

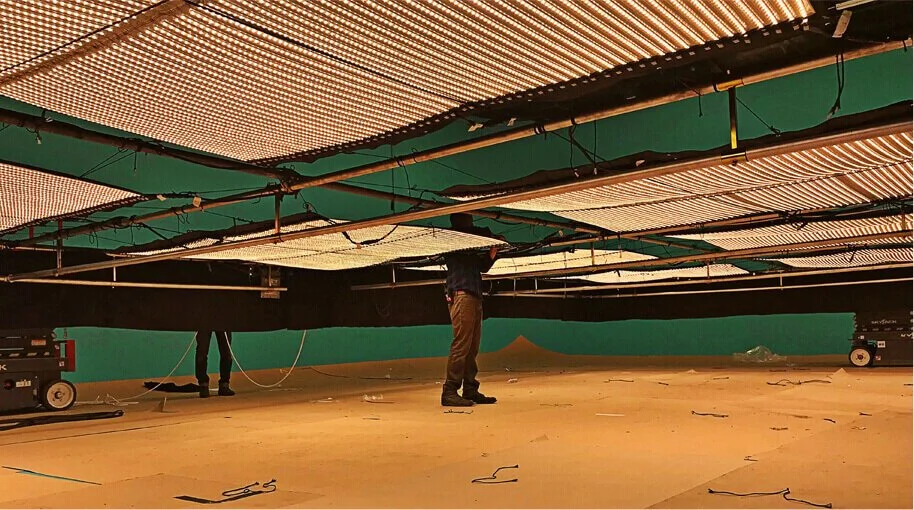

LED BLANKET GALLERY








TECH SPECS
SERIES | KELVIN | CCT (K) | CRI | F.C. / LUX @ 12” (SIZE) |
F.C. / LUX @ 24” (SIZE) |
F.C. / LUX @ 36” (SIZE) |
F.C. / LUX @ 48” (SIZE) |
F.C. / LUX @ 5' (SIZE) |
F.C. / LUX @ 6' (SIZE) |
---|---|---|---|---|---|---|---|---|---|
8' x 8' | Tungsten | 2675K | 95 | 1665 fc / 17923 lux |
1583 fc / 17032 lux |
1404 fc / 15123 lux |
1142 fc / 12298 lux |
918 fc / 9885 lux |
747 fc / 8044 lux |
Daylite | 6010K | 95 | 2053 fc / 22094 lux |
1857 fc / 19979 lux |
1571 fc / 16910 lux |
1244 fc / 13440 lux |
1054 fc / 11338 lux |
841 fc / 9046 lux |
|
Hybrid | 4053K | 95 | 1631.4 fc / 17560 lux |
1445.8 fc / 15563 lux |
1188.2 fc / 12789 lux |
958.2 fc / 10314 lux |
755.8 fc / 8135 lux |
605.6 fc / 6518 lux |
MECHANICAL AND ELECTRICAL SPECIFICATIONS
SERIES | HEIGHT (INCH) |
HEIGHT (MM) |
WIDTH (INCH) |
WIDTH (MM) |
DEPTH (INCH) |
DEPTH (MM) |
WEIGHT (LBS) |
VOLTAGE (V DC) |
CURRENT (AMPS) |
DRAW @ 120V |
WATTS | LED QTY |
---|---|---|---|---|---|---|---|---|---|---|---|---|
8' x 8' | 92 | 2336.8 | 91 | 2311.4 | 1 | 25.4 | 18 | 24 | 88 | 14A | 1840 | 14400 |
